Network Cable Tester with PoE, NCV & Length Measurement for CAT5/CAT6/CAT8, YGiTK

Notes About This Item:

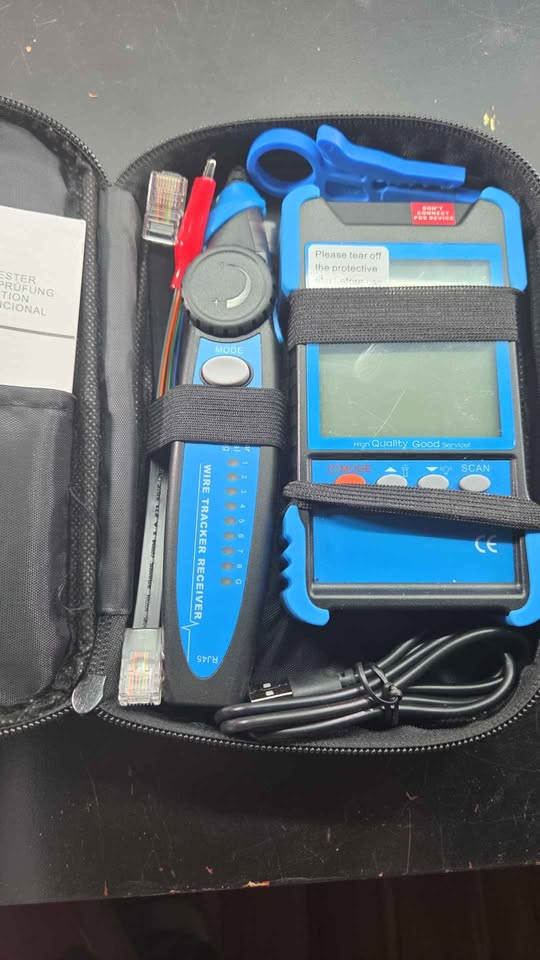

This is new and has not been used.  I did power it on to confirm and looks good

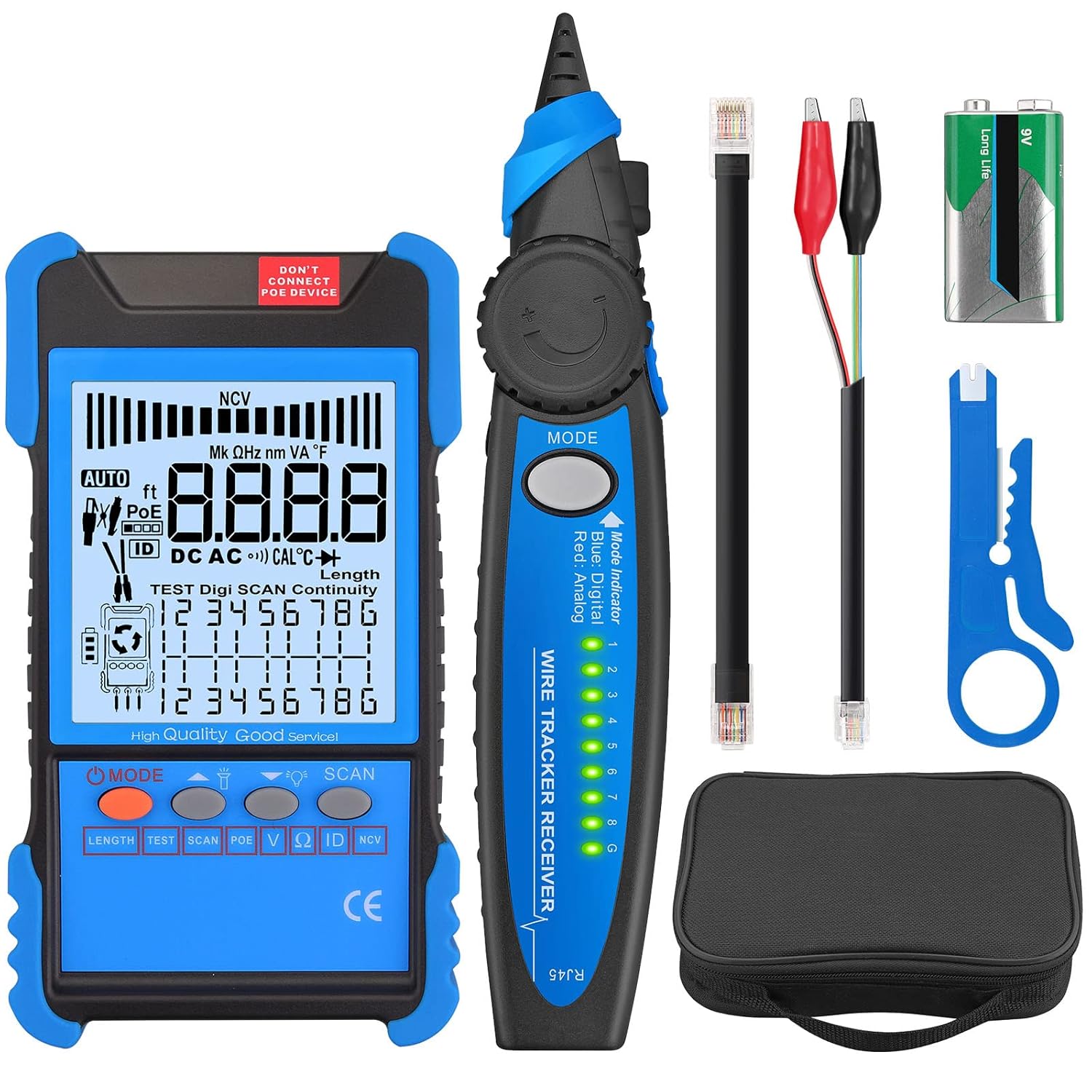

Notes from Amazon: This is a 15-in-1 multifunction cable tester designed for cable engineers and technicians. Its functions include dual-mode cable tracing, PoE and NCV voltage measurement, cable length measurement, continuity testing, voltage and cable fault testing, and a hub flicker function. It supports network cables from Cat 5 to Cat 8.

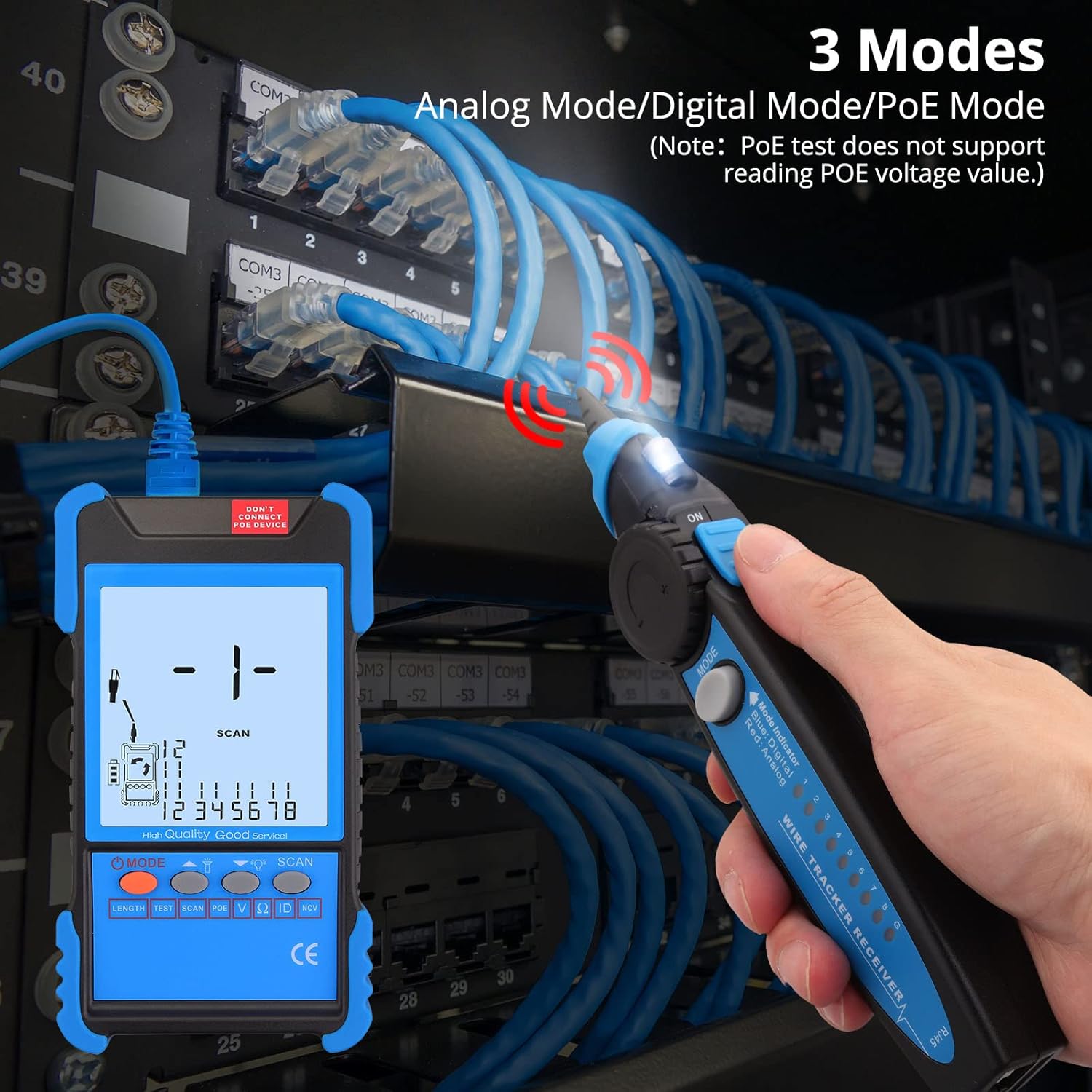

The tester has three user-selectable operating modes: POE Mode, Digital Mode, and Analog Mode. The POE test function checks the polarity and mapping of PoE network switches, withstands up to 60VDC, and helps locate network ports by causing the indicator lights on a hub or switch to flash.

The device performs real-time measurement of cable length up to 400 meters (1312 feet) and includes built-in short-circuit protection. The length test function is suitable for various metal cables with at least two wires, such as network, telephone, and BNC cables.

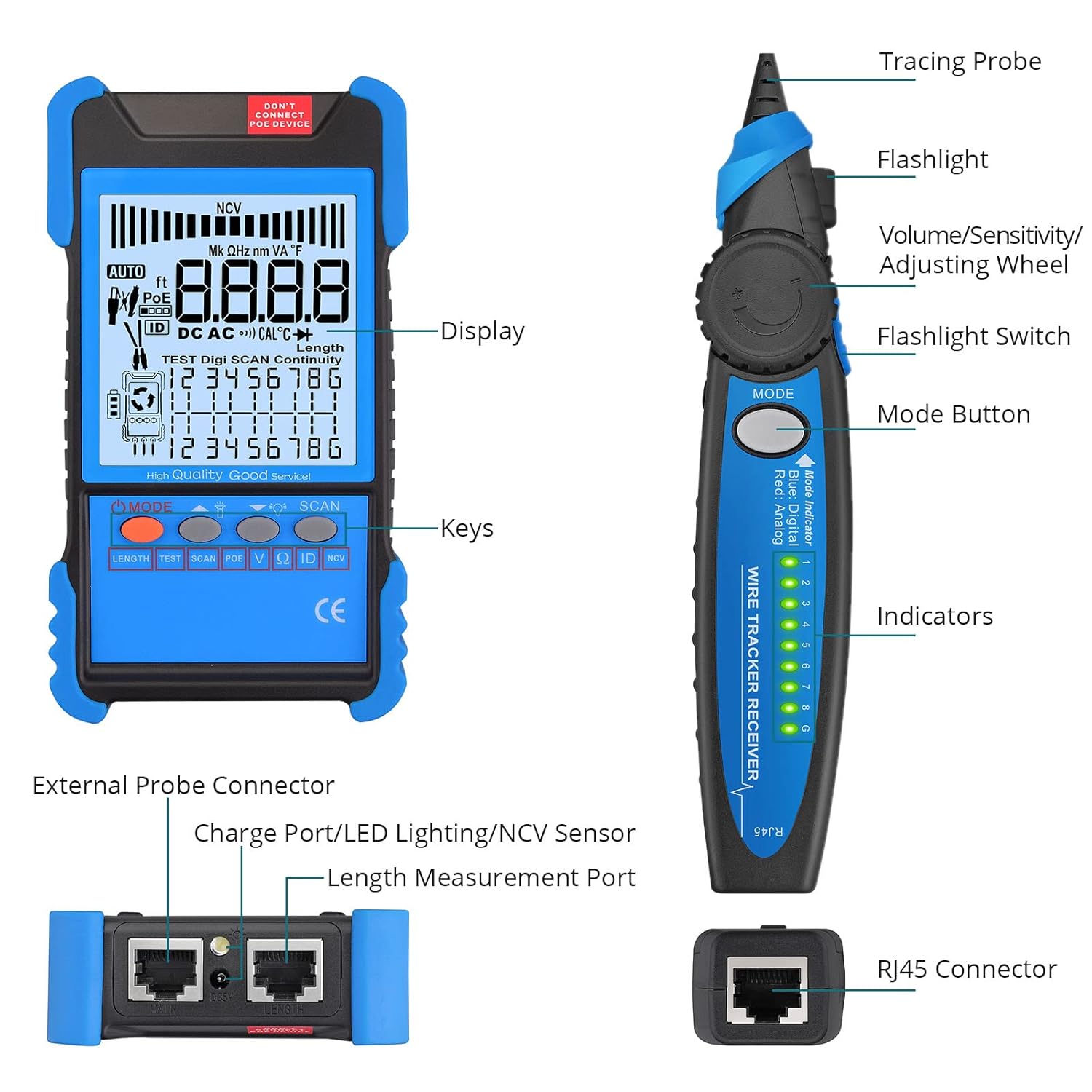

This unit is equipped with two backlit LCD screens, one on the monitor and one on the receiver. It also includes a built-in LED flashlight for use in dark environments.

This multifunction tester is a tool for technical maintenance personnel. Its applications include work on telephone systems, computer networks, and BNC cables. It can be used to trace and locate underground or in-wall wires for the installation and troubleshooting of security monitoring systems, communication lines, and other weak-current electrical systems.
