*Note this item is only available for local pickup in Stony Plain due to the weight and difficulty to package
Condition:

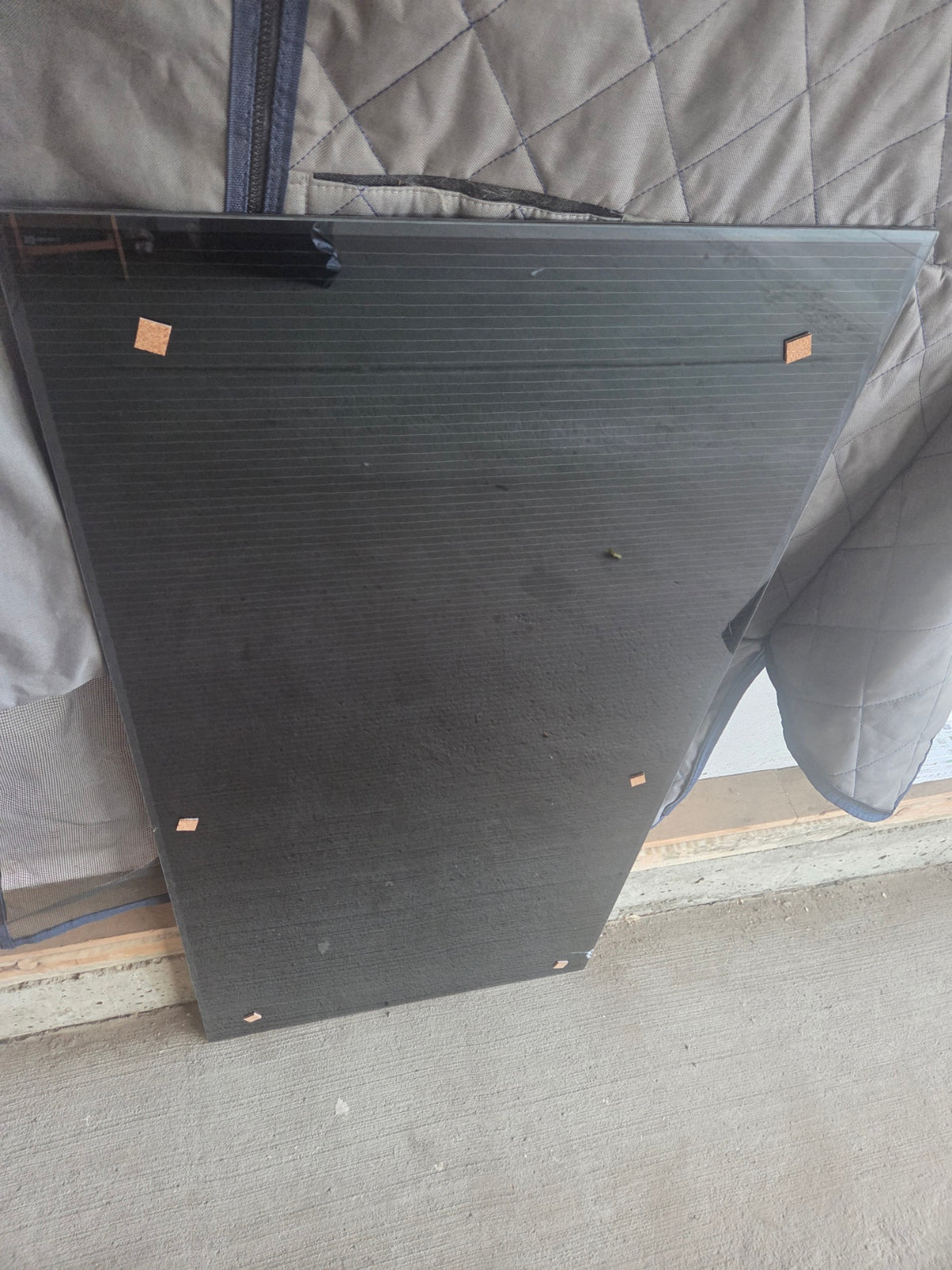

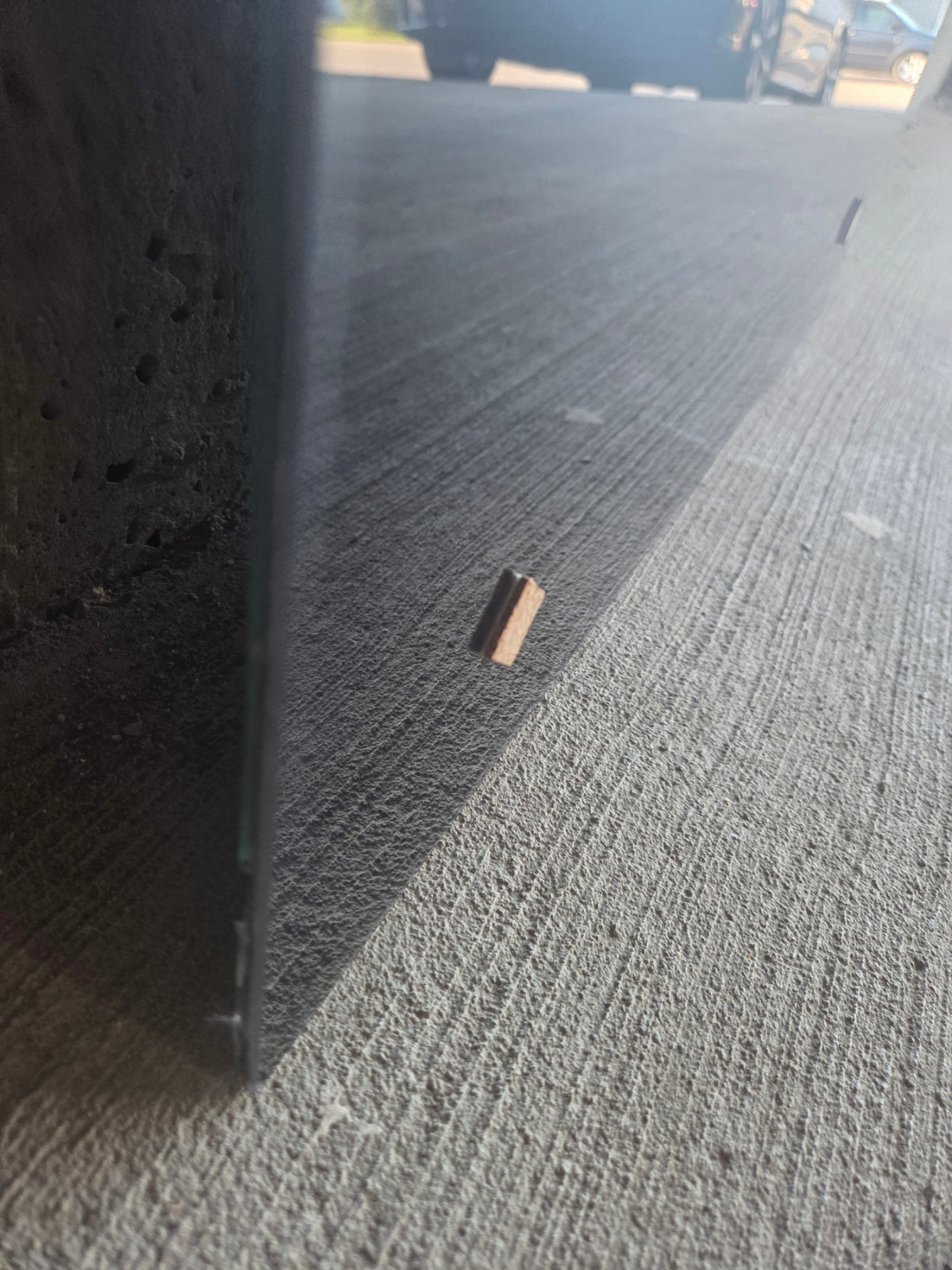

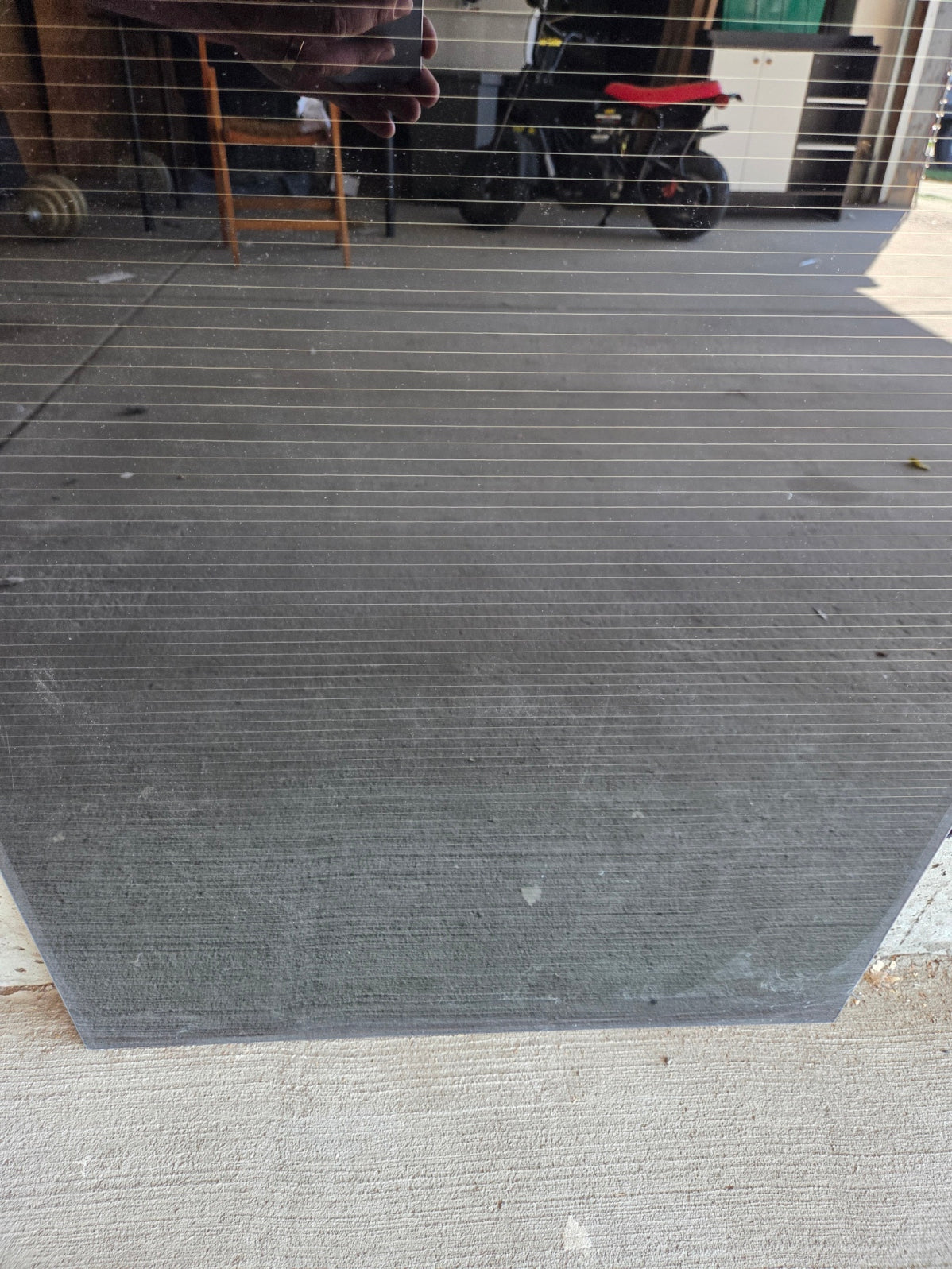

Selling as a set of 4. All panels are brand new/unused (factory corner cork pads and taped cables still intact), and one panel was stored outdoors for the summer but not hooked up.

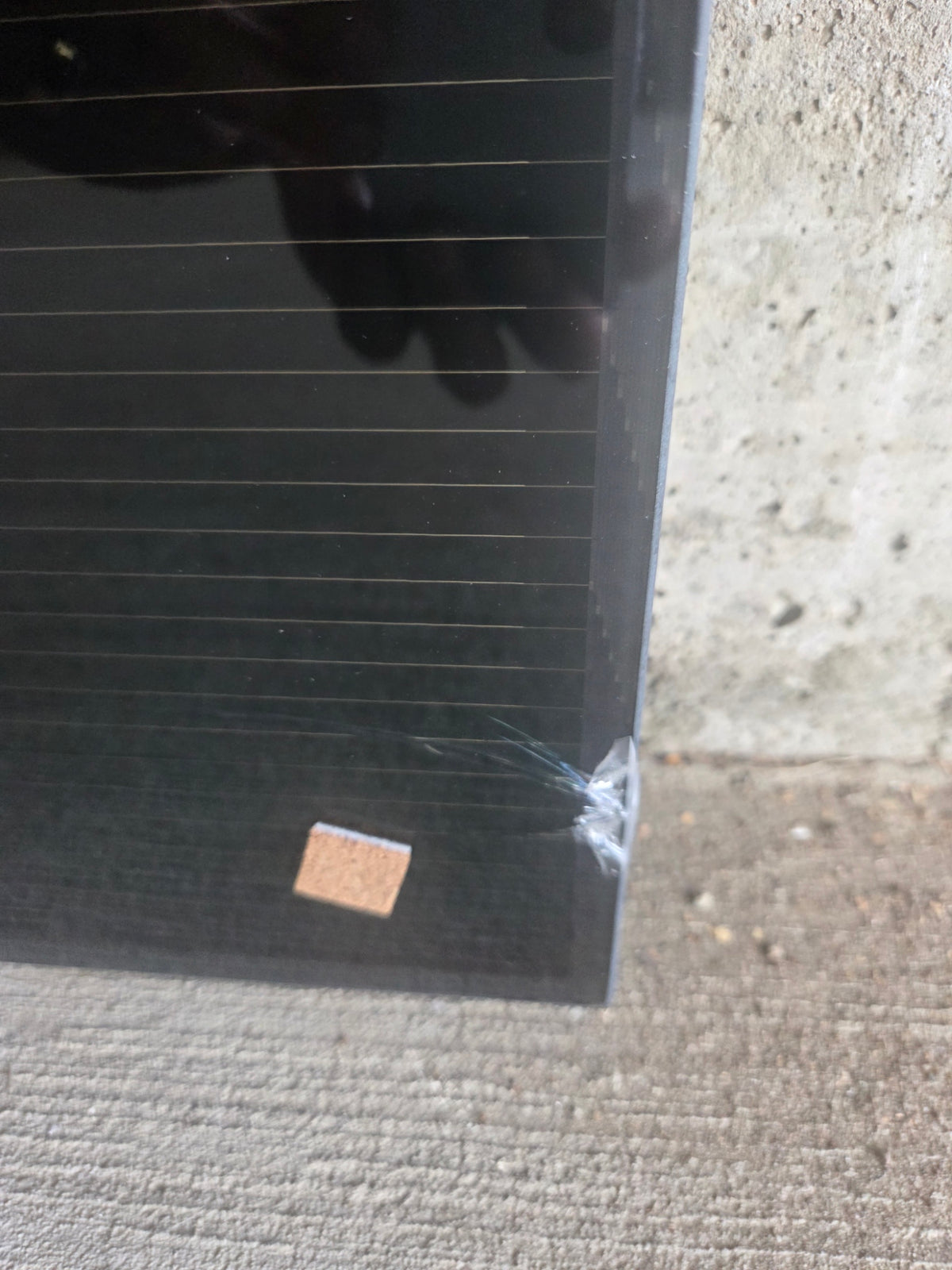

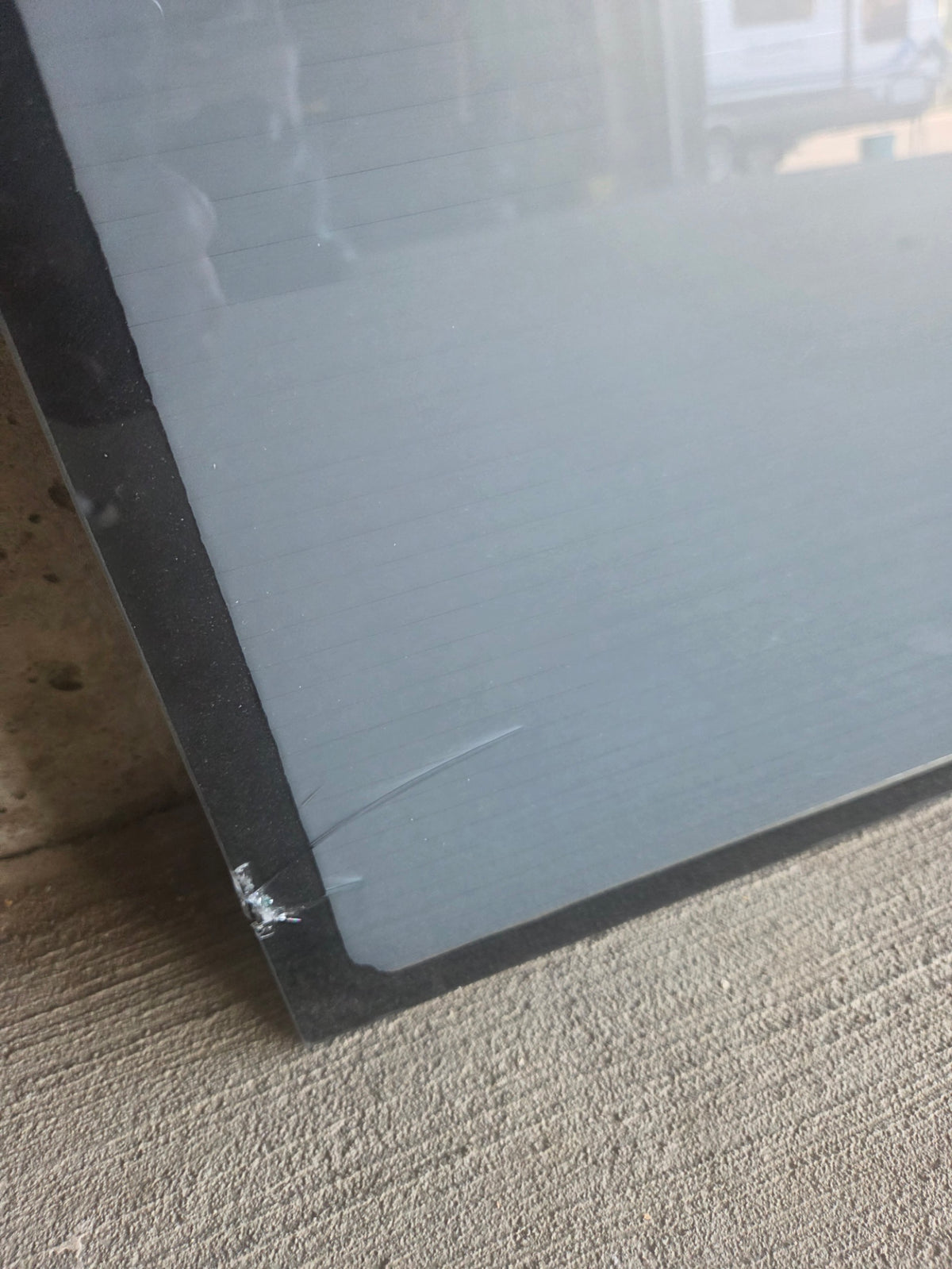

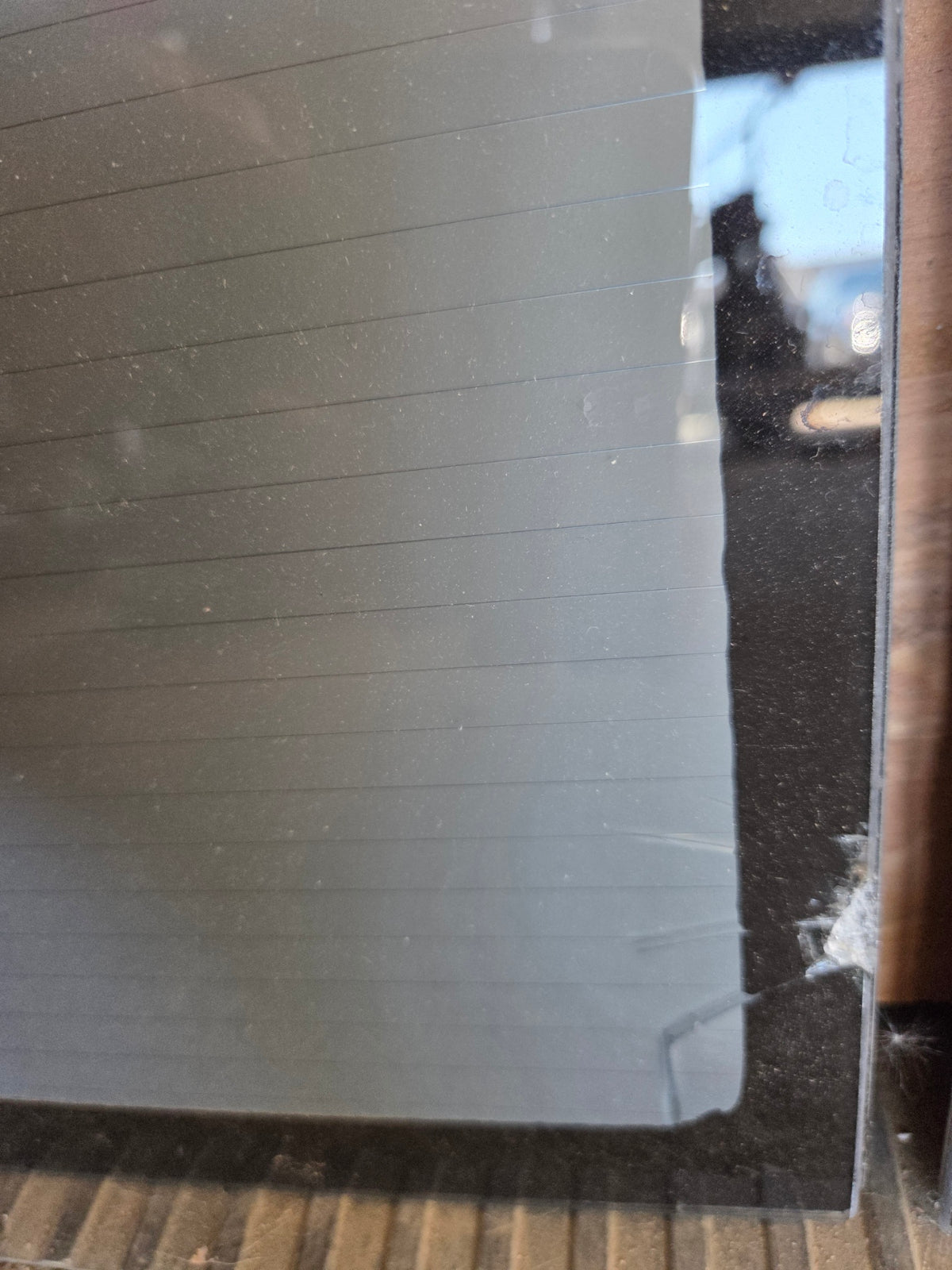

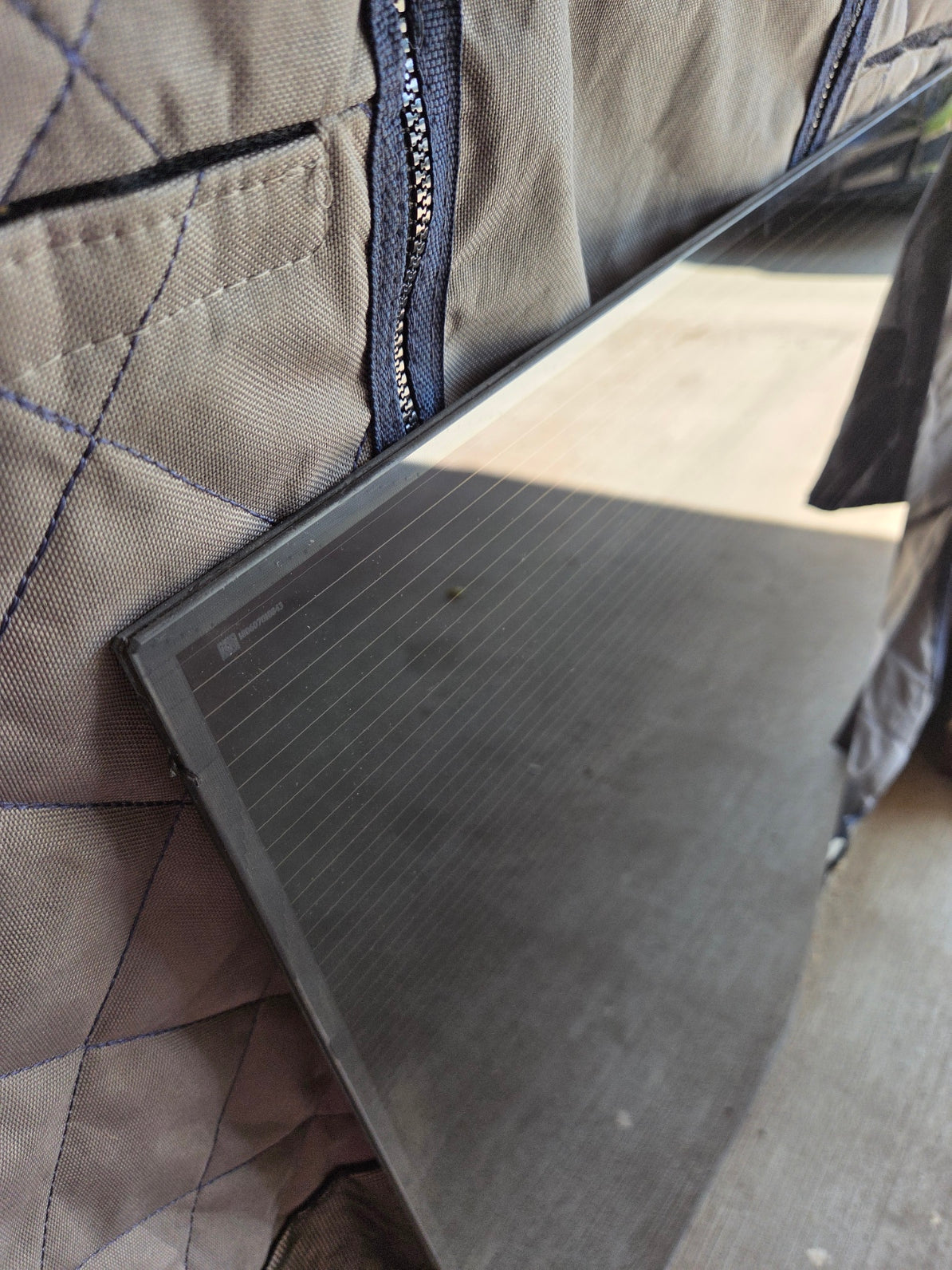

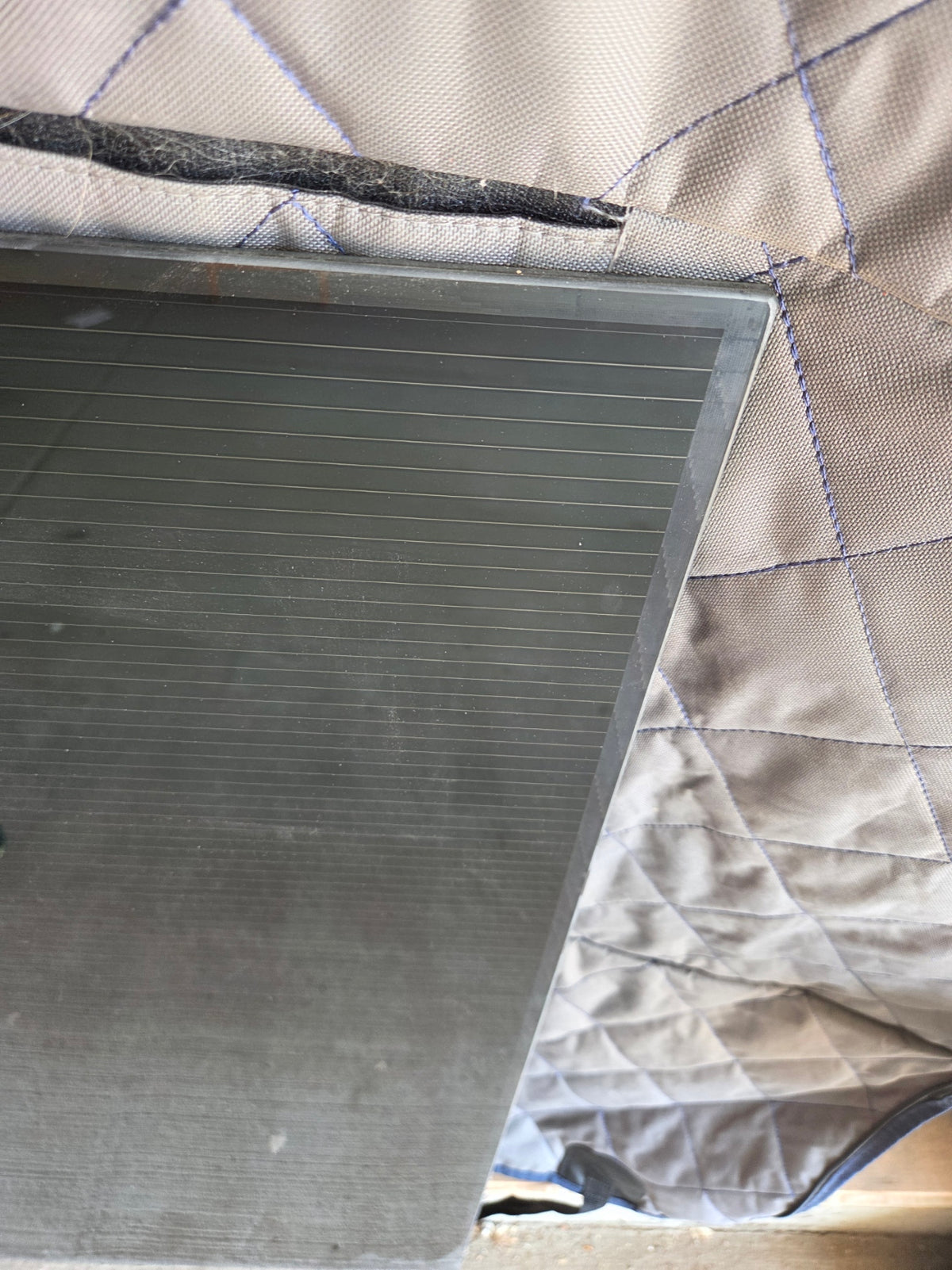

Two panels are in mint condition, One panel has a chip on the lower front corner edge with a few fine surface fracture lines along the outer margin, One panel has an edge chip on the rear glass surface.
Neither chip penetrates the sealed junction box or interrupts the electrical output.

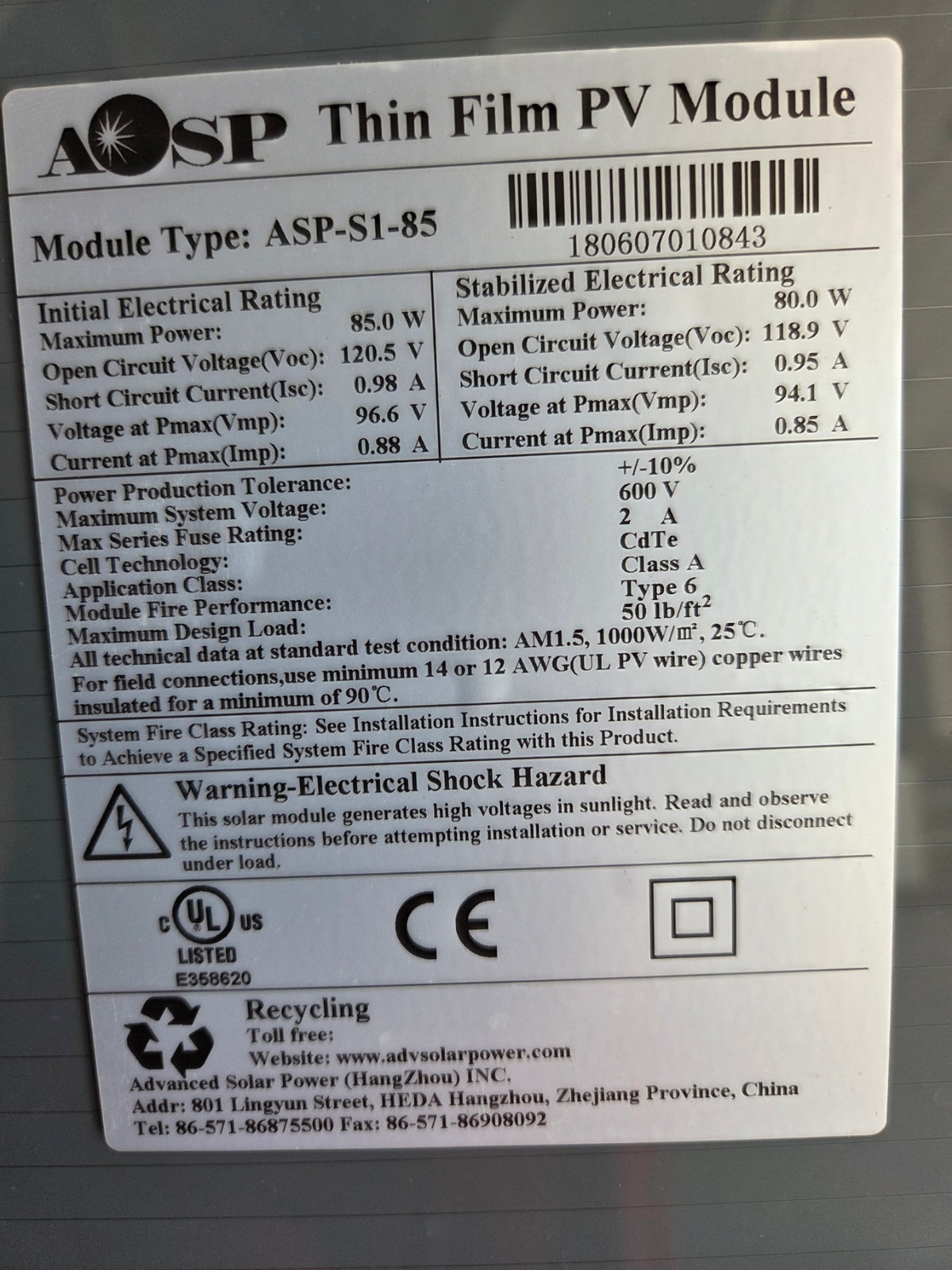

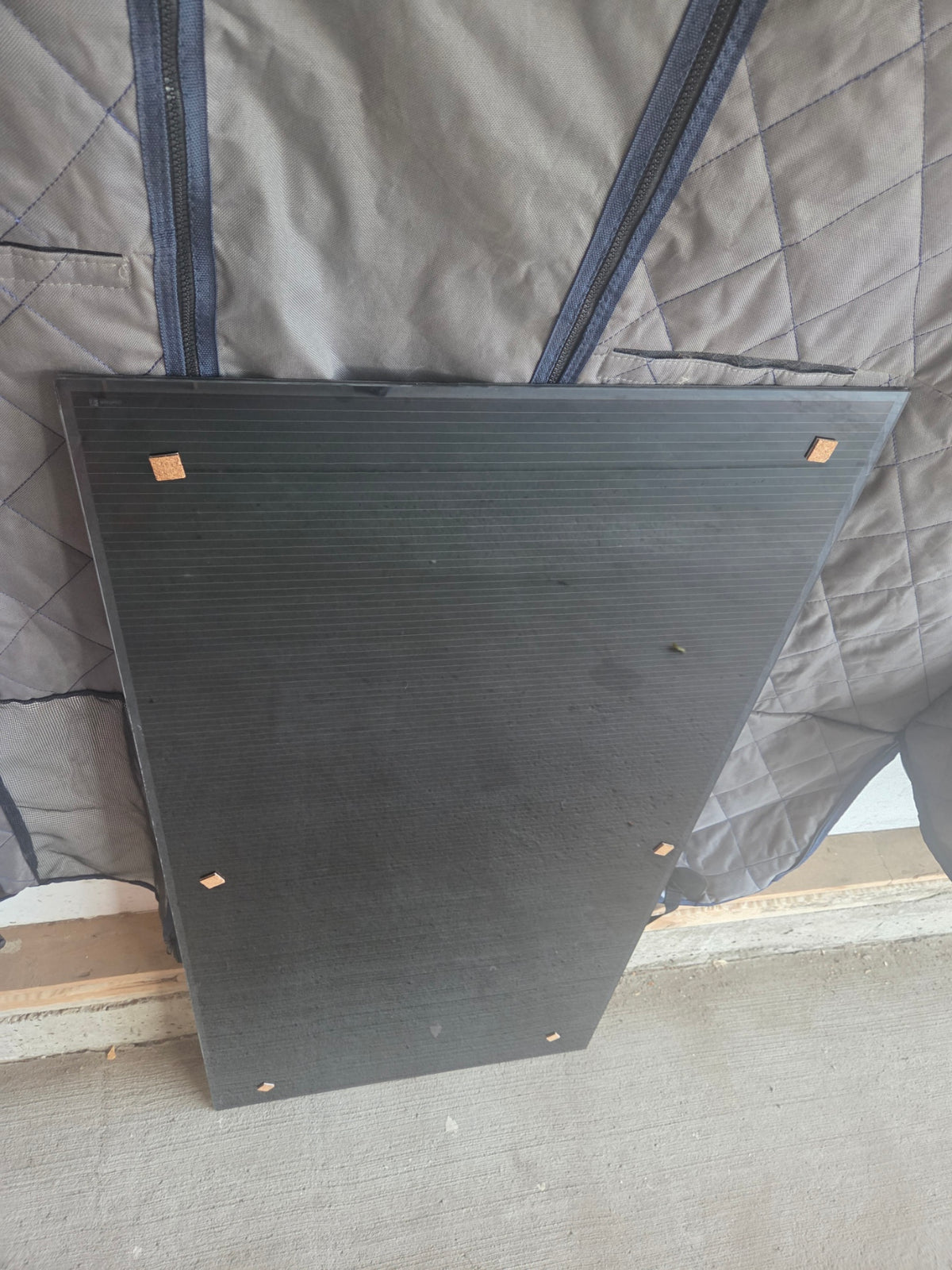

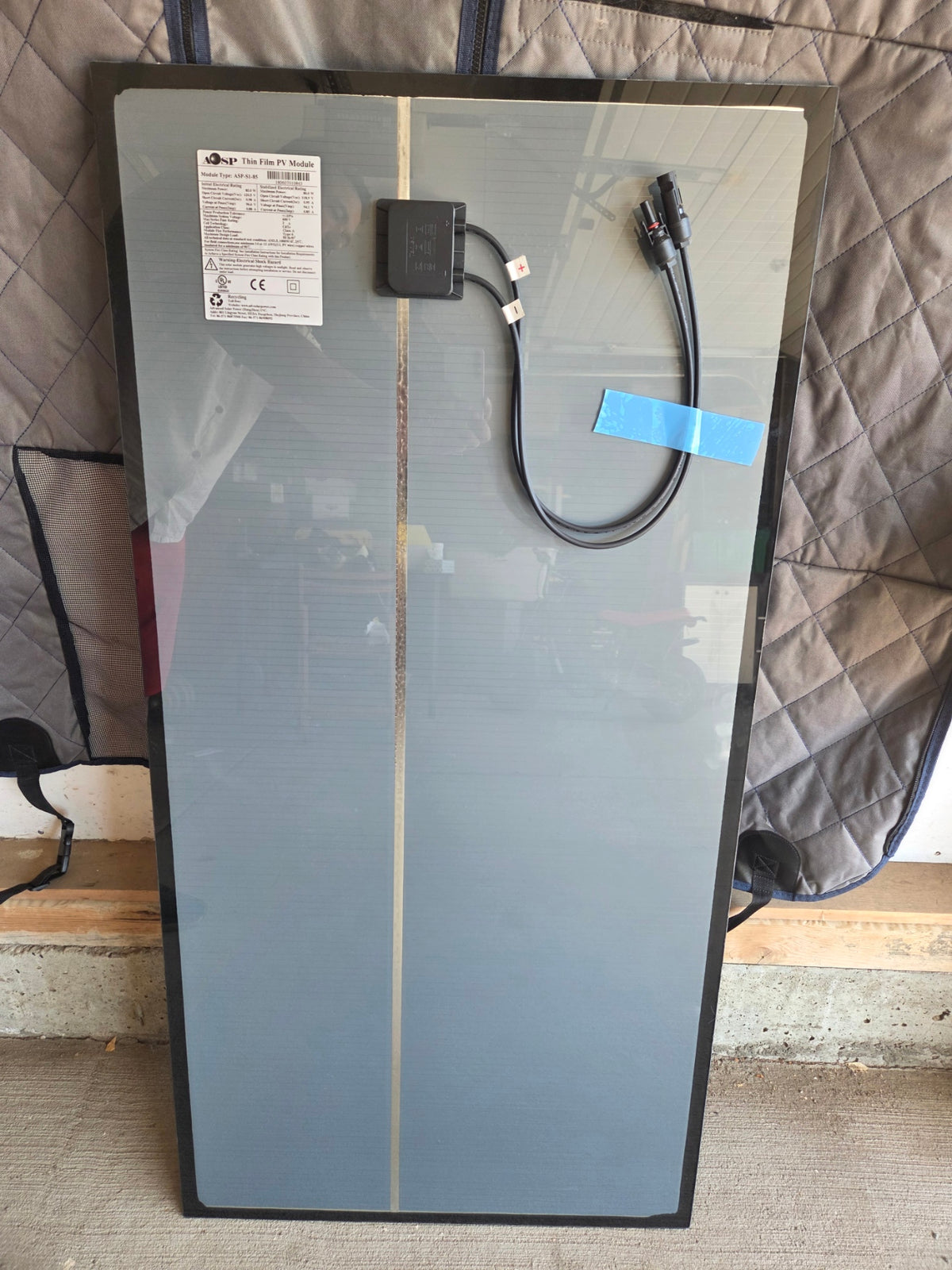

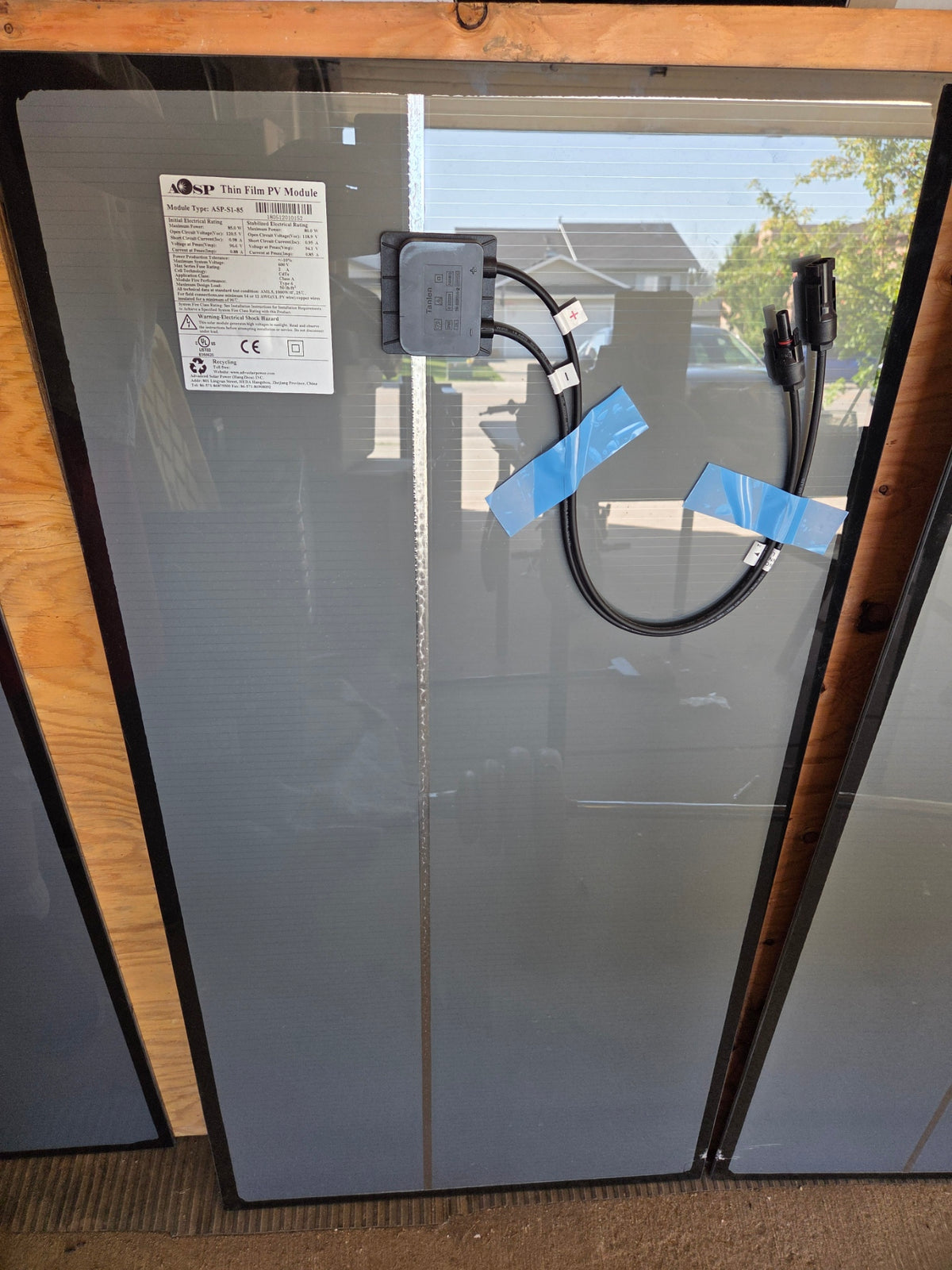

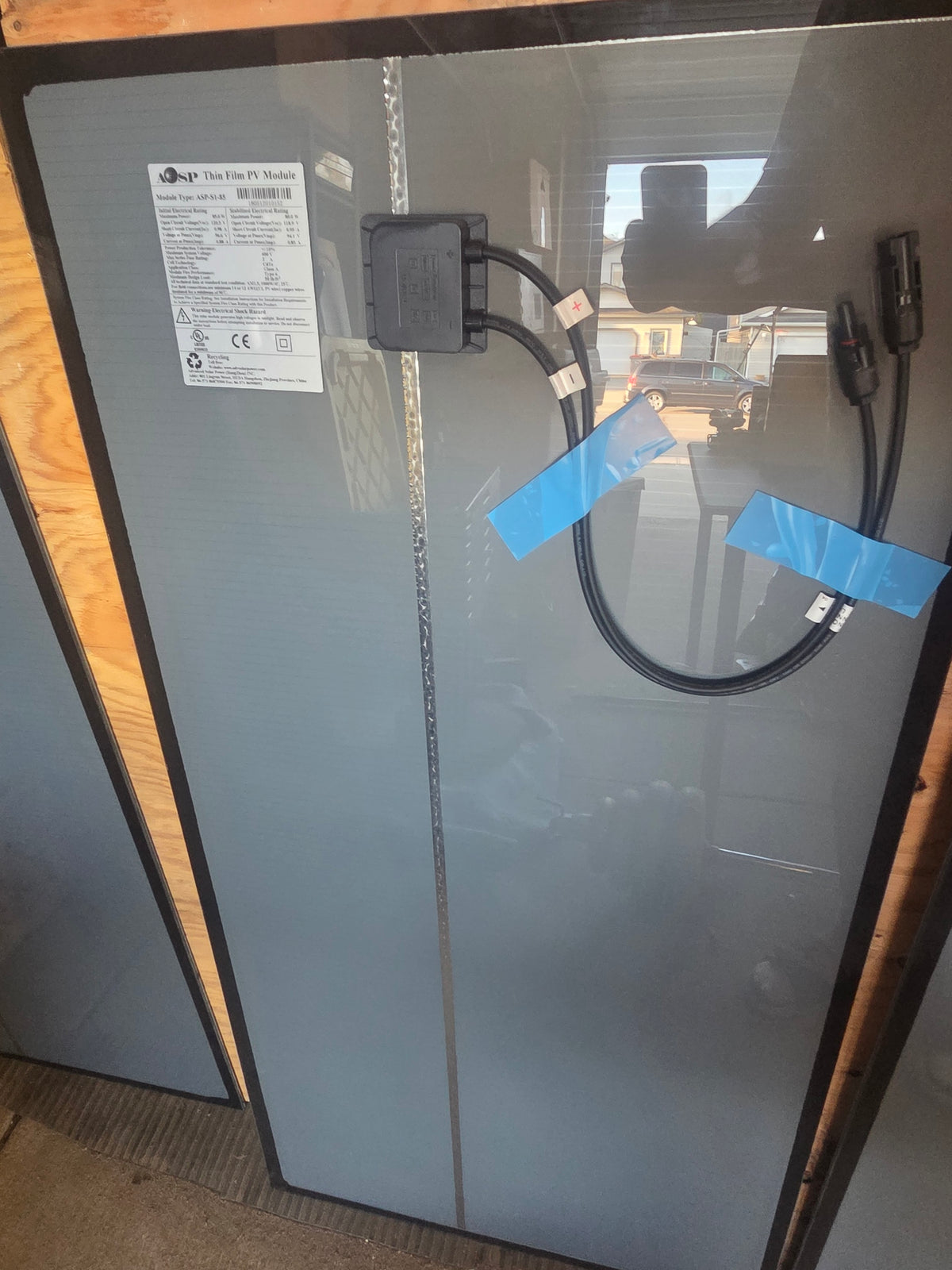

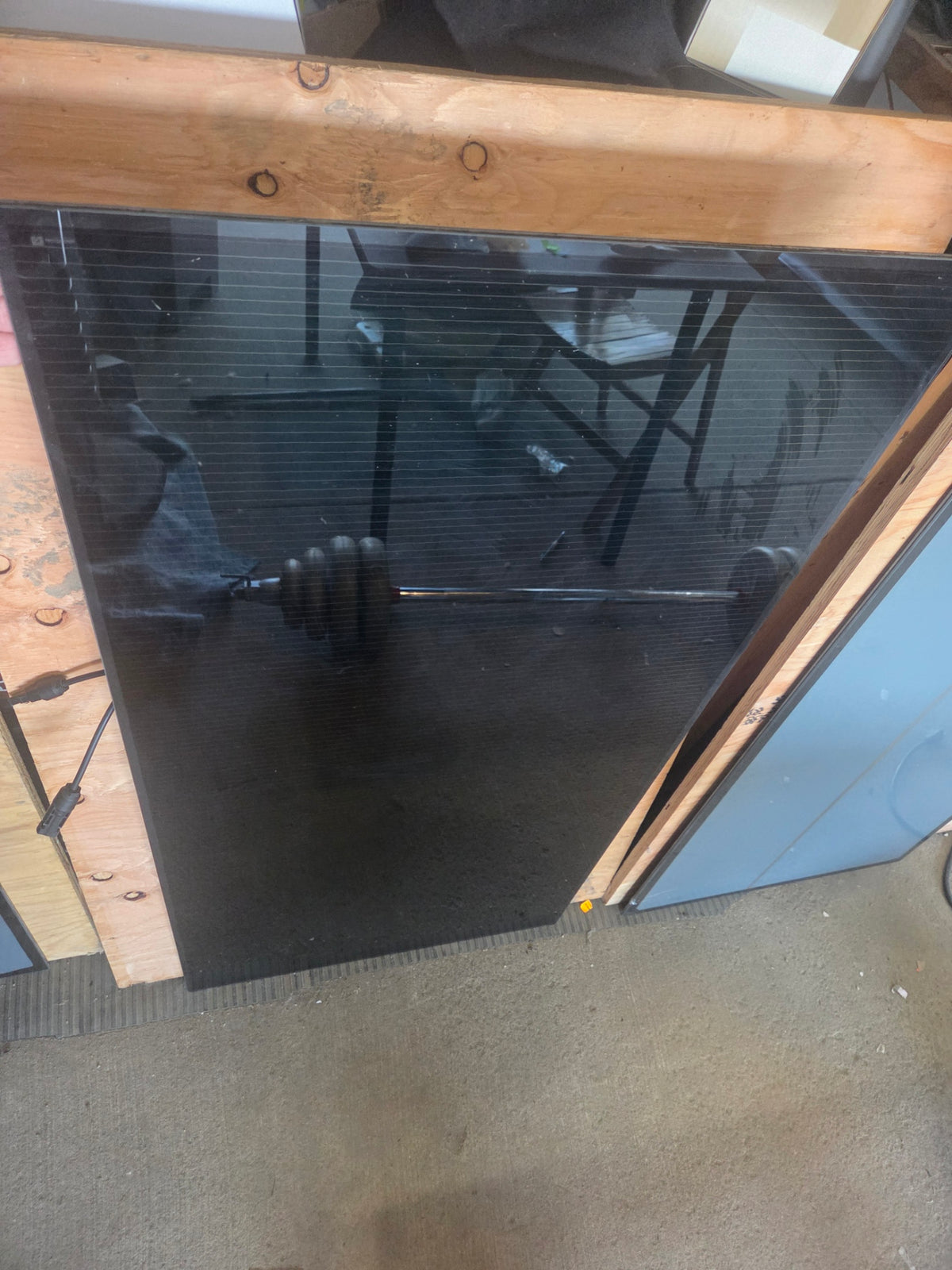

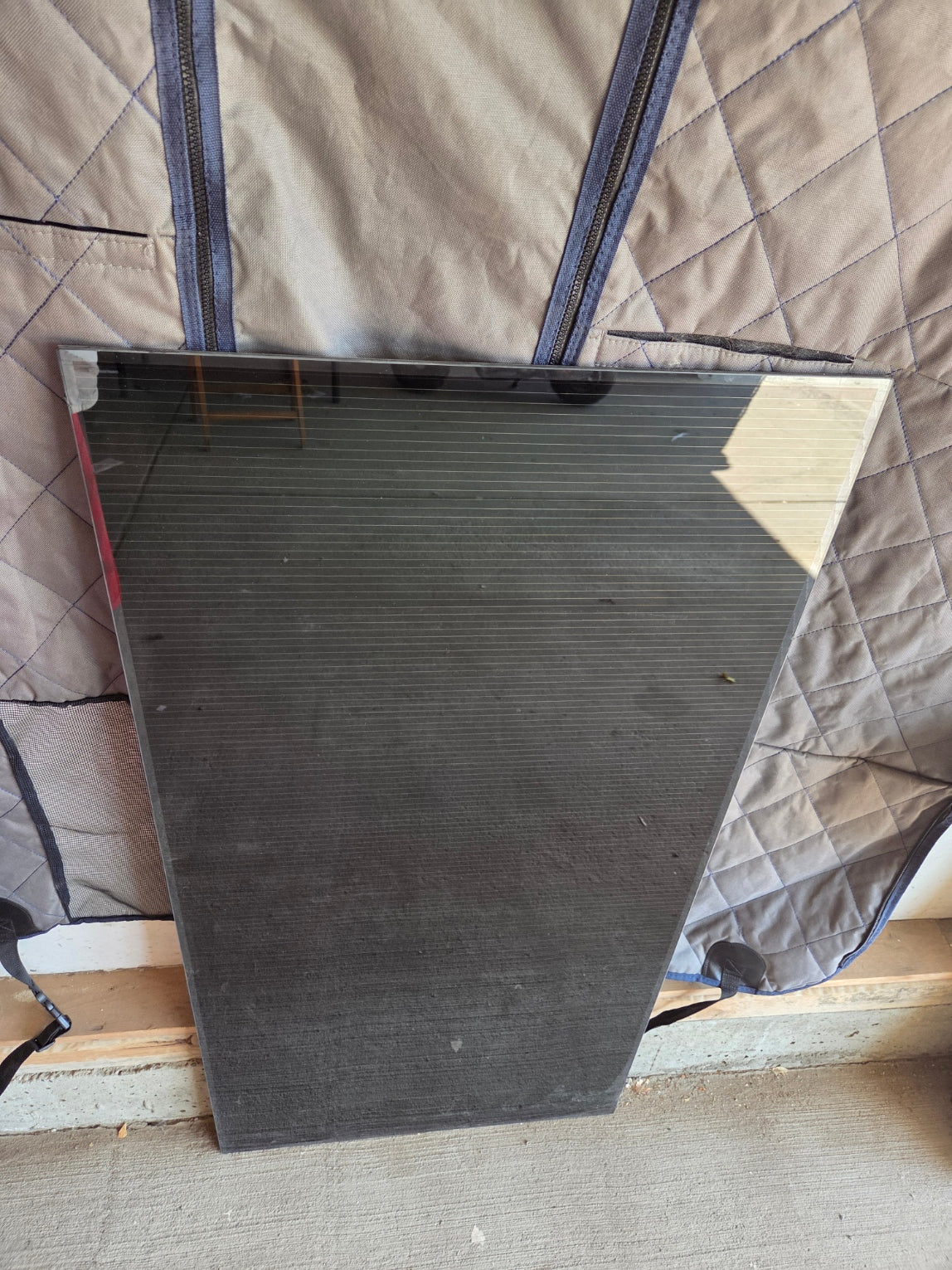

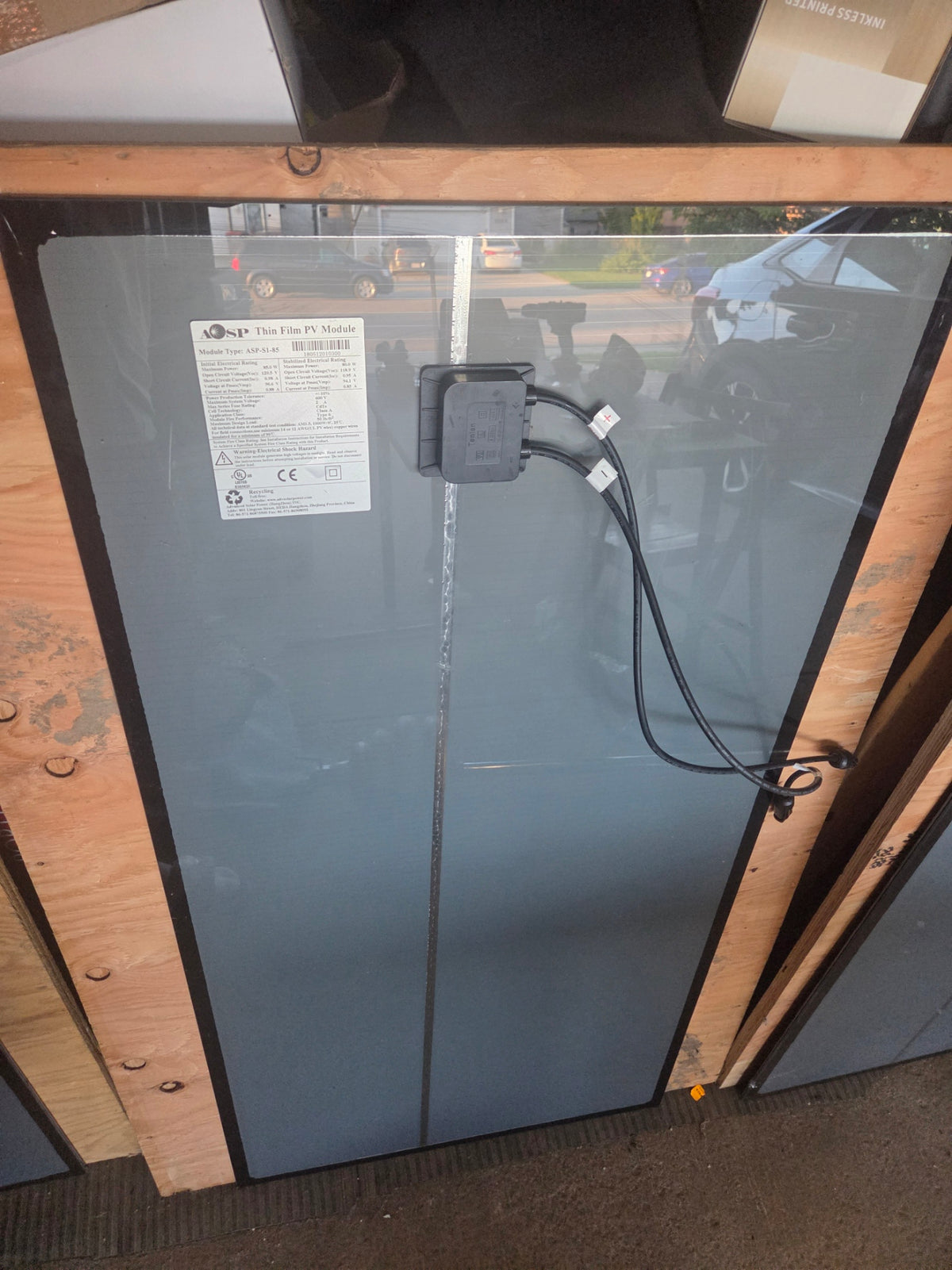

Advanced Solar Power (ASP) Thin Film CdTe PV Solar Modules (Model: ASP-S1-85).
Specifications (Per Panel):
Module Dimensions: 1200 mm x 600 mm x 6.8 mm (~47.2" x 23.6" x 0.27")
Weight: Approx. 11.8 kg (26 lbs) each
Power Rating: 85.0W Initial / 80.0W Stabilized
Open Circuit Voltage (Voc): 120.5V (Stabilized: 118.9V)
Voltage at Pmax (Vmp): 96.6V (Stabilized: 94.1V)
Short Circuit Current (Isc): 0.98A (Stabilized: 0.95A)
Current at Pmax (Imp): 0.88A (Stabilized: 0.85A)
Max System Voltage: 600V (Class A / Type 6)
Cell Type: Thin Film (CdTe) Glass-on-Glass

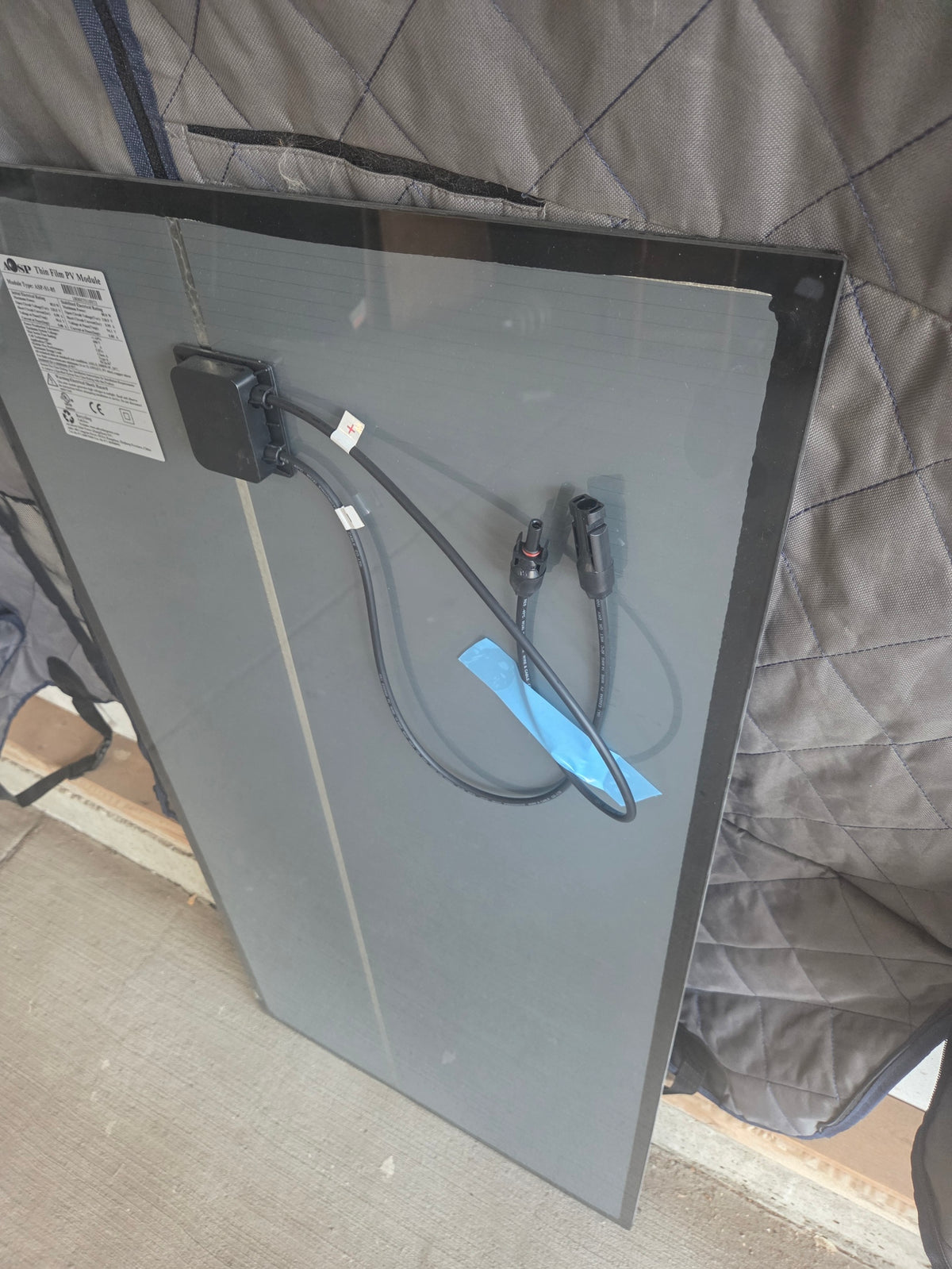

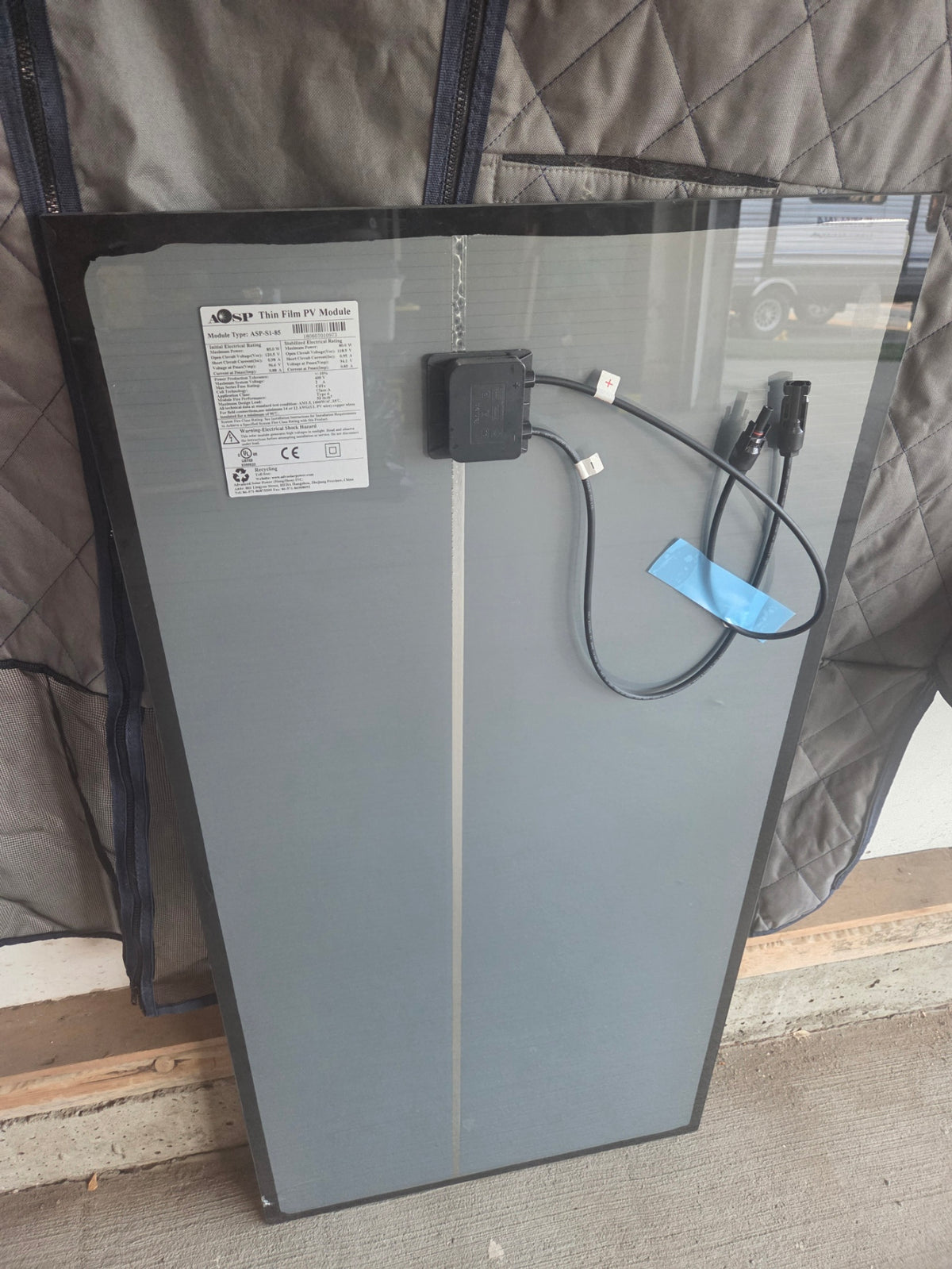

Connectors: Pre-wired junction box with MC4 leads
Great high-voltage thin-film panels for DIY solar projects, off-grid battery charging with compatible high-voltage MPPT controllers, grid-tie setups, or shed/cabin solar systems.
